THE "BLOCK WIZARD"
updated April 2023
This page is under construction - keep checking back

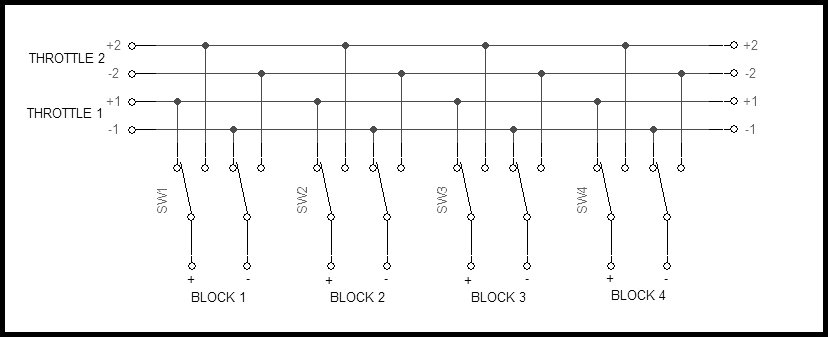

It's a simple concept, and simple always works. Designed specifically for small home layouts using two throttles. These little modules will save you tons of wiring time and will reduce wiring mistakes. Each assembly will assign one of two throttles to up to four blocks. These can be 'daisy chained' to accommodate multiples of four blocks of track. The switches I provide are 3 position DPDT miniature toggles with a center-off position. They're rated for 6 amp loads, but I wouldn't recommend a steady load of more than 3 amps, and, in most cases, you'll likely be running at well under 1 amp.
